Apex

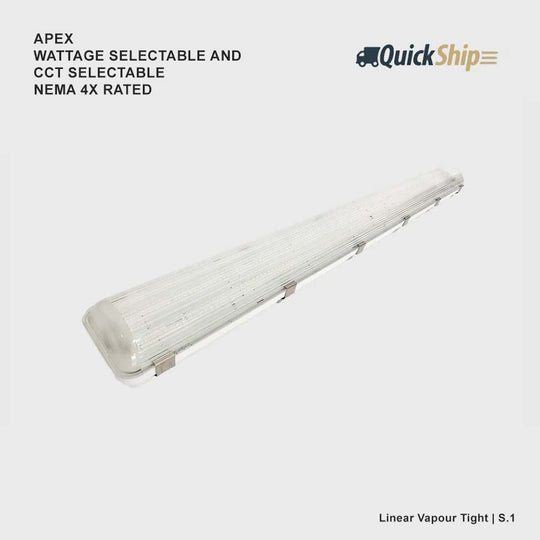

The Apex is a CCT SELECTABLE AND WATTAGE SELECTABLE LED linear vapour tight provides maximum light output with durable construction. Featuring a one piece fire retardant polycarbonate housing and lens, the Apex was designed to meet or exceed IES recommended foot-candle levels at installed heights for parking garages, making it ideal for utility lighting, parking garages, and stairwells; where meeting applicable building and safety codes is required.

Features

Wattage selectable from 32W / 44W / 50W, with CCT Selectable
options for 3000K / 4000K / 5000K. High quality polycarbonate diffuser integrated with powder coated lighting tray, and stainless steel clips.
IP Rating: IP66
IK Rating: IK08
NEMA 4X Rated

Quick Summary

• Wattage: 32W / 44W / 50W
• Mounting: Surface Mount (Standard) / Suspended
• Lumens : 4800lm,6600lm,7500lm
• Optics: 1200
• CCT: Selectable 3000K / 4000K / 5000K
• CRI: Ra>80Ra
• Voltage:  120-347VAC (CUNV)
• Dimming: Continuous 0-10V Dimming
• Finish: White
• IP Rating: IP66
• Certification: cULus, and DLC Premium
• Warranty: 6 Years
