Agrandir Luna 1

Luna 1

The Luna1 is a WATTAGE SELECTABLE LED post top fixture. It provides a great outdoor lighting solution for a variety of applications, such as schools, streets, gardens, yards, and commercial areas. The Luna 1 is designed to provide efficient, long-lasting lighting with an ultra-thin, aesthetically pleasing design, and an IP66 rating ensures that the LED light is protected against dust and moisture, making it ideal for use in areas where water resistance is essential.

Features

Wattage selectable options include 30/40/50W and 100/120/150W, with CCT options for 3000K / 4000K / 5000K / 5700K.
IP Rating: IP66
IK Rating: IK08
Beam Angle: 90°/ 120° / T2 / T3 / T4 / T5(140x140°)
Arm Diameter: 60 - 80mm / 2.4 - 3.1"
EPA: 0.528
T2/T3 BUG: B4-U1-G4
T5 BUG: B3-U0-G2

Quick Summary

• Wattages: 30/40/50W  |  100/120/150W
• Lumen Output: (50WS) - 8000lm, (150WS) - 21000lm
• Mounting: Slip Fitter (For 3” Tenon)
• Beam Angle: 90 Degrees, 120 Degrees, Type 2, Type 3, Type 4, Type 5
• CCT:  3000K / 4000K / 5000K / 5700K
• CRI: Ra>70
• Voltage: 120-347V (CUNV)
• Dimming: 0-10V Dimming
• Finish: Black
• Certification: CE, ETL and DLC
• Warranty: 6 Years






Downloads

Related Products

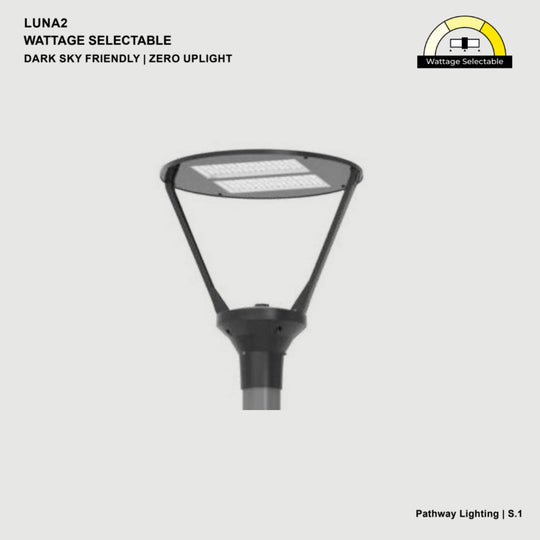

Luna 2
