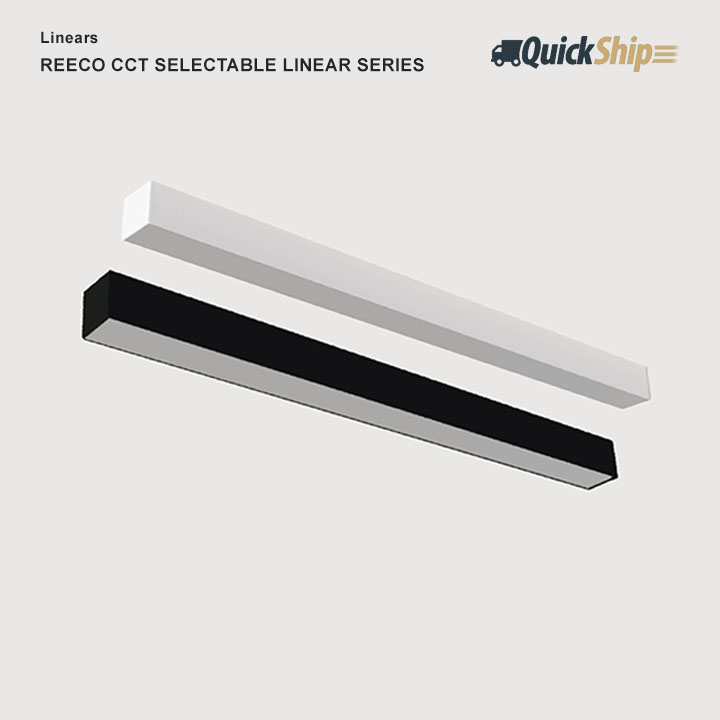

Reeco Linear
The Reeco linear CCT Selectable LED series offers Premium Light diffusion over a light weight impact resistant opal polycarbonate lens with different mounting options.
This ultra-efficient versatile LED linear fixture can meet the challenges of restaurant, retail, industrial, warehousing and task lighting applications.
Standard colours are black and white.
Seemless, continuous run connections. All connectors are lit (down only).
It can create a functional yet relaxing atmosphere and provide an even wash of light within a space. Low profile design optimizes shipping, storage, and handling. It comes in two different Luminous ways with Down (100%), and Up/ Down (30%/70%).
It is CCT Selectable 3000K 3500K 4000K and 5000K. Reeco is available in various sizes / wattages 2’(20W), 4’(40W), and 8’(80W) with an efficacy of 110 Lumens / watt.
IP20 rated.
CUNV 120-347V
Custom lengths and wattages are available. Please consult factory.
The standard length of power cord is 0.8m/2.62ft for 2ft fixture, 1.5m/4.9ft for 4ft fixture and 2.5m/8.2ft for 8ft fixture. The standard finish of power cord is White for white fixture and Black for black fixture.
All fixtures (including recessed) are completely serviceable from below for maintenance after installation.
Composition
L Corners
System Parts & Accessories
CANOPY COVER WITH 5ft CABLE KIT
LN-RE-CK
SPECTACULAR ALUMINUM REFLECTOR
LN-RE-AR
MUD FLANGE
LN-RE-MF
X CONNECTOR
LN-RE-XCON
T CONNECTOR
LN-RE-TCON
REGULAR L CORNER
LN-RE-RLC
OUTSIDE L CORNER
LN-RE-OLC
INSIDE L CORNER
LN-RE-ILC
Reeco Linear Marketing Video
Reeco Linear Installation Instruction Videos
Reeco Linear | CCT Selectable Video
Reeco Linear | Continuous Run Connection Video
Reeco Linear | Suspended Mount Video
Reeco Linear | Surface Mount Video
Reeco Linear | Recessed Mount Installation Video
Reeco Linear | Lens Removal And Installation Video
Reeco Linear | Wall Mount Installation Video
Reeco Linear | Installed Video 2
Reeco Linear | T Bar Surface Mount Video
Quick Summary
• Wattage: 20W, 40W, 80W
• Length: 2ft, 4ft, 8ft
• Lumen : (20W) - 2200lm, (40W) - 4400lm, (80W) - 8800lm
• CCT: Selectable 3000K/ 3500K/ 4000K/ 5000K
• CRI: Ra>80
• Luminous Way: Down, Up&Down (30% - 70%)
• Voltage: 120-347V (CUNV)
• Dimming: 0-10V
• Mounting: Surface Mount (Standard), Suspended, Wall Mount, Recessed/Trim, Recessed/
Trimless, Surface Mount
T-bar
• Finish: White (Standard) & Black
• Certification: CE and cUL
• Warranty: 5 Years
Mounting options
Recessed (trim and trimless), suspended, wall, and surface mounting options available.
RT-RECESSED
Trim version
RTL-RECESSED
Trimless version
SP-SUSPENDED
W-WALL
SF-SURFACE
COMPOSITION
L CORNERS
SYSTEM PARTS & ACCESSORIES
CANOPY COVER WITH
5ft CABLE KIT
LN-RE-CK
SPECULAR ALUMINUM
REFLECTOR
LN-RE-AR
MUD FLANGE
LN-RE-MF
X CONNECTOR
LN-RE-XCON
T CONNECTOR
LN-RE-TCON
REGULAR L CORNER
LN-RE-RLC
OUTSIDE L CORNER
LN-RE-OLC
INSIDE L CORNER
