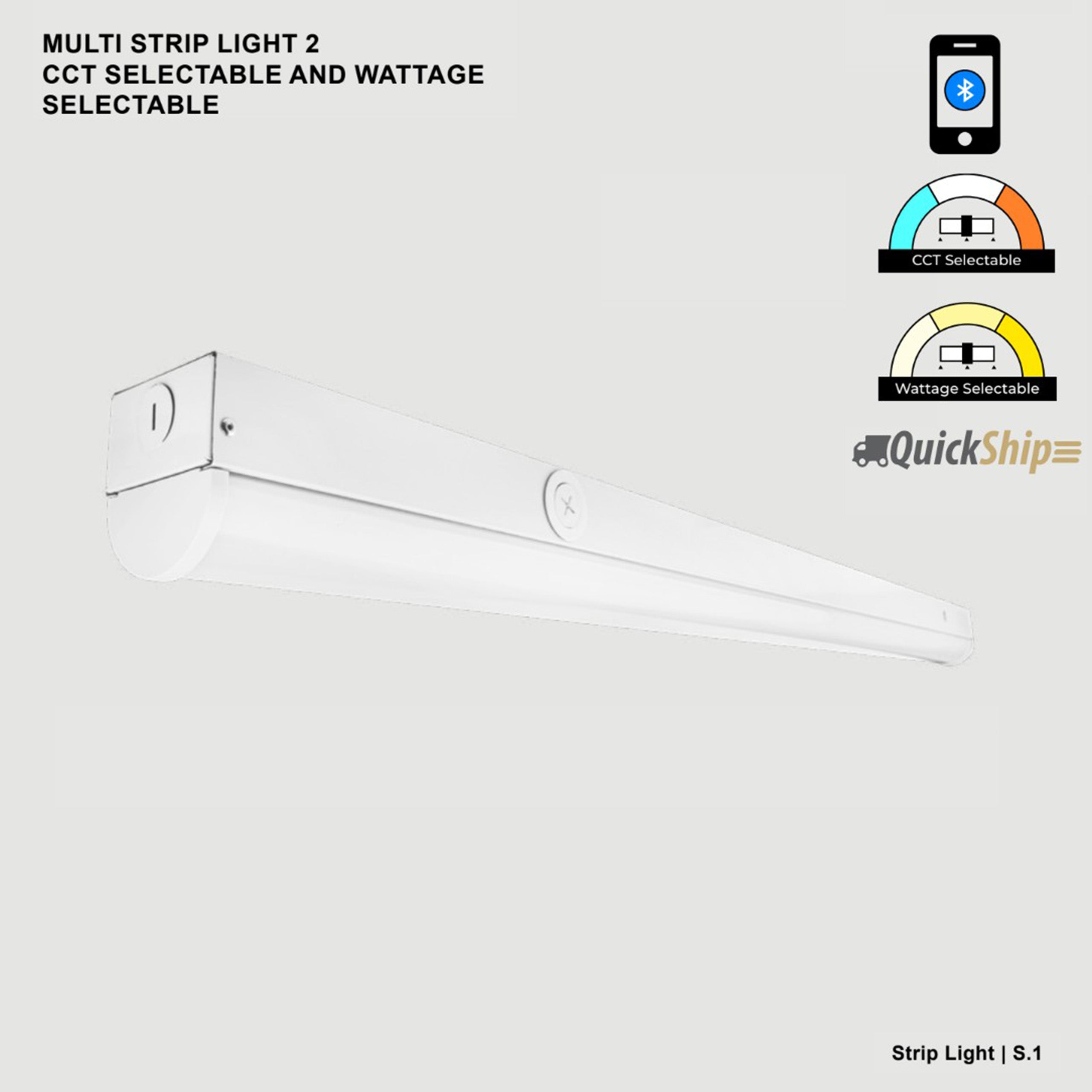

Multi Strip Light 2
LuxLogic Lighting’s Multi Strip 2 Light is BOTH CCT SELECTABLE (3500K/4000K/5000K) AND WATTAGE SELECTABLE.
It is ideal for use in mezzanines, workshops, commercial garages and warehouse environments.
The Multi Strip Light has a 120-degree beam angle and a handy removable lens for quick cleaning. It has an efficacy of 130lm/W.
2 ft, 4 ft and 8 ft lengths are available. The fixture is available with either a round (standard) or square PC lens (please consult factory).
They can be surface mounted or suspended.
Suspension kit (SP):
2 ft/4 ft: 2pcs 1m aircraft cable and 1pc 1m white power cable
8 ft: 4pcs 1m aircraft cable and 1pc 1m white power cable
They can be connected for continuous runs by way of an IC (inline connector) accessory.
Operating temperature: -20 ~ 45oC / -4 ~ 113oF
Suitable for Damp Locations
Quick Summary
• Wattage Selectable Options:
2 ft: 15W/20W/25W
4 ft: 30W/40W/50W
8 ft: 60W/70W/80W
• Lumens: (25W) - 3250lm, (50W) - 6500lm, (80W) - 10400lm
• Mounting: Surface Mount (Standard), Suspended
• Size: 2 Feet, 4 Feet, 8 Feet
• CCT: Selectable 3500K/4000K/
5000K
• CRI: Ra>80+
• Voltage: 120-347V (CUNV)
• Dimming: 0-10V Dimming
• Finish: White (Standard)
• Suitable for Damp Locations
• Certification: UL and DLC
• Warranty: 6 Years
Downloads
- Data Sheet
- Sell Sheet
IES Files Installation Guide - Warranty Statement
