Zoom Champion 3

Champion 3

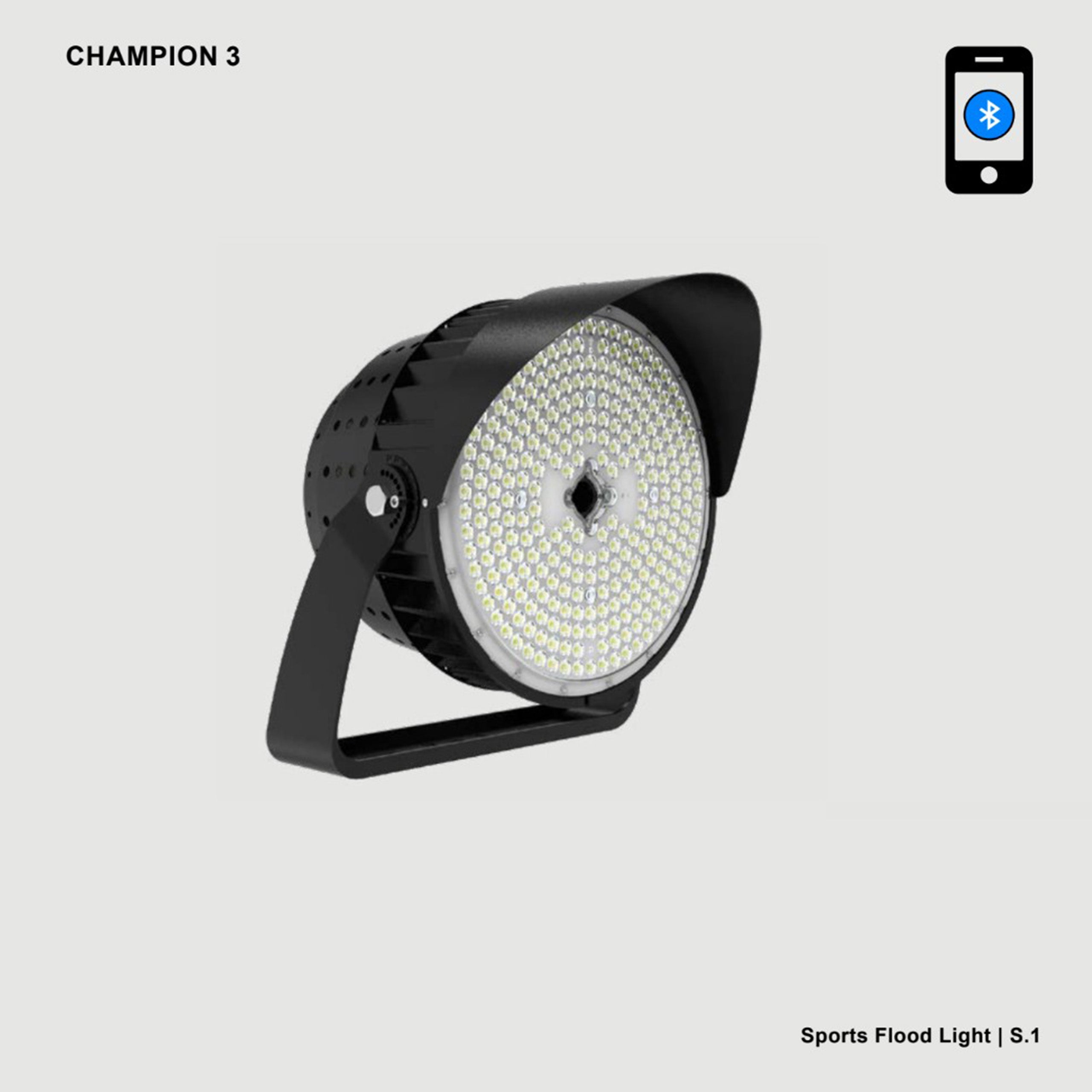

The Champion 3 LED Sports Flood Light is the ideal stadium light. This sports light packs a punch providing 135-170lm/W. It is available in multiple beam angles and color temperatures. This fixture is waterproof, (IP 66 rated), dust-proof, and provides superior thermal venting. Operating temperature – 40° to 50°C (-40F to 122F). Standard dimming of 0-10V.

Features

With cold forging (heat sinks, increased heat dissipation and a longer life for SD series sports lighting. The back cover has a cooling effect (the power is placed on the back cover, and the heat generated is conducted to the back cover to dissipate heat).

Available with Laser Aiming Device (LAD) precision control in angling and aiming each sport light to its exact optimal position.

The Champion 3 boasts an efficacy of between 135 lm/W and 170 lm/W depending upon wattage. Please Note: All Lumen output values given are based on 5000K and certain beam angles.

Outputs will vary depending upon wattage, voltage, colour temperature and optics (beam angles). Please refer to our IES files on our website.

Certain custom optics are available for certain wattages. Please consult factory as MOQ’s may apply.

All drivers 300-1800W are integral and IP66 Rated. Remote driver options are available for all wattages. Please consult factory.

Custom length secondary cables (from driver to luminaire) complete with connections are available. Please consult factory.

Quick Summary

• Wattage: 300W,400W, 500W, 600W, 720W, 800W, 900W, 1000W, 1100W, 1200W, 1500W, 1600W, 1800W
• Mounting: Yoke (standard), Slip Fitter
• Lumen : (300W) - 51000lm, (400W) - 66000lm, (500W) - 80000lm, (600W) - 93000lm, (720W) - 118800lm, (800W) - 128000lm, (900W) - 139500lm, (1000W) - 150000lm, (1100W) - 159500lm, (1200W) - 162000lm, (1500W) - 217500lm, (1600W) - 224000lm, (1800W) - 243000lm
• Optics: 15D, 20D, 30D, 45D
• CCT: 3000K, 4000K, 5000K
• CRI: 70+, 80+ (Option)
• Voltage: 100-277V (UNV), 277-480V (HV)
• Dimming: 0-10V Dimming
• Finish: Black
• IP Rating: IP66
• Certification: CE, cUL, FCC, and DLC
• Warranty: 6 Years
