Maglite Linear

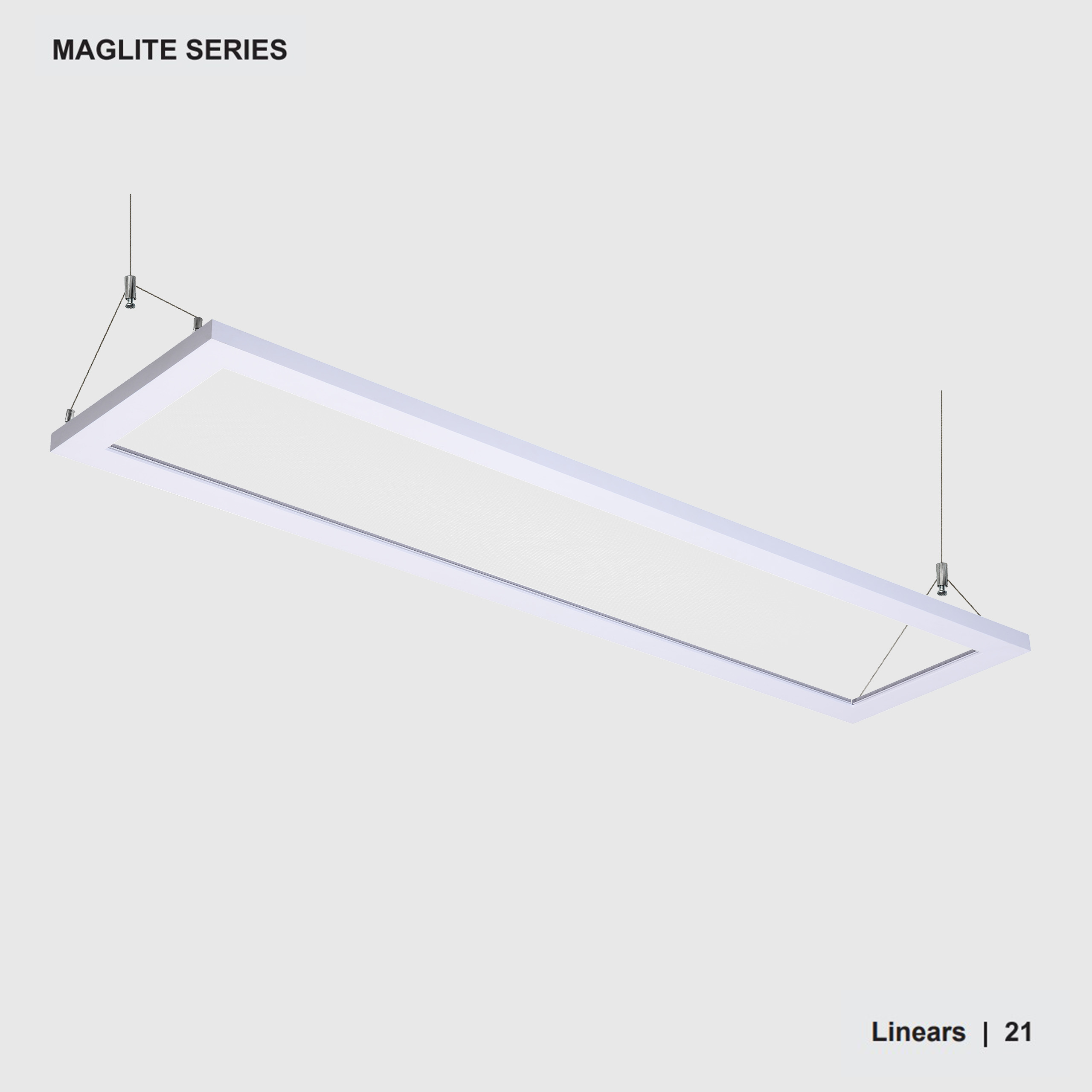

The Luxlogic Maglite suspended luminaire is a uniquely designed LED optical system that incorporates a clear transition zone between the frame and light-emitting zone, making an illusion of light floating in mid-air. It is a smart choice for hallways, reception areas, and shopping malls.

Construction:

Extremely transparent, highly weather resistant Light Guide Plate (LGP) scatters the light perfectly. Aluminum housing is very thin and made for easy installation and maintenance.

Optics:

LGP Lens, 180° beam angle, up (50%) and down (50%) lighting optional. 3000K, 3500K, 4000K CCT and 80+CRI.

Electrical:

Instant on powering within 120 to 277 Volts AC range. Power: 40W.

Wattage 40W
Lumens 4400lm
CCT 3000K, 3500K, 4000K
CRI Ra>80
Optics LGP lens
Voltage 100 -277V
Dimming 0-10V Dimming
Mounting Suspended
Finish White, Black, Silver
Direction 50% Up / 50% Down
Ambient Temp. -30° ~ 40°C
Certification cETLus
Warranty 5 Years



Maglite Linear Spec Sheet

Maglite Linear IES Files

MAglite Linear Installation Guide

LuxLogic General Warranty Statement

Quick Summary:

Wattage 40W
Lumens 4400lm
CCT 3000K, 3500K, 4000K
CRI Ra>80
Optics LGP lens
Voltage 100 -277V
Dimming 0-10V Dimming
Mounting Suspended
Finish White, Black, Silver
Direction 50% Up / 50% Down
Ambient Temp. -30° ~ 40°C
Certification cETLus
Warranty 5 Years
