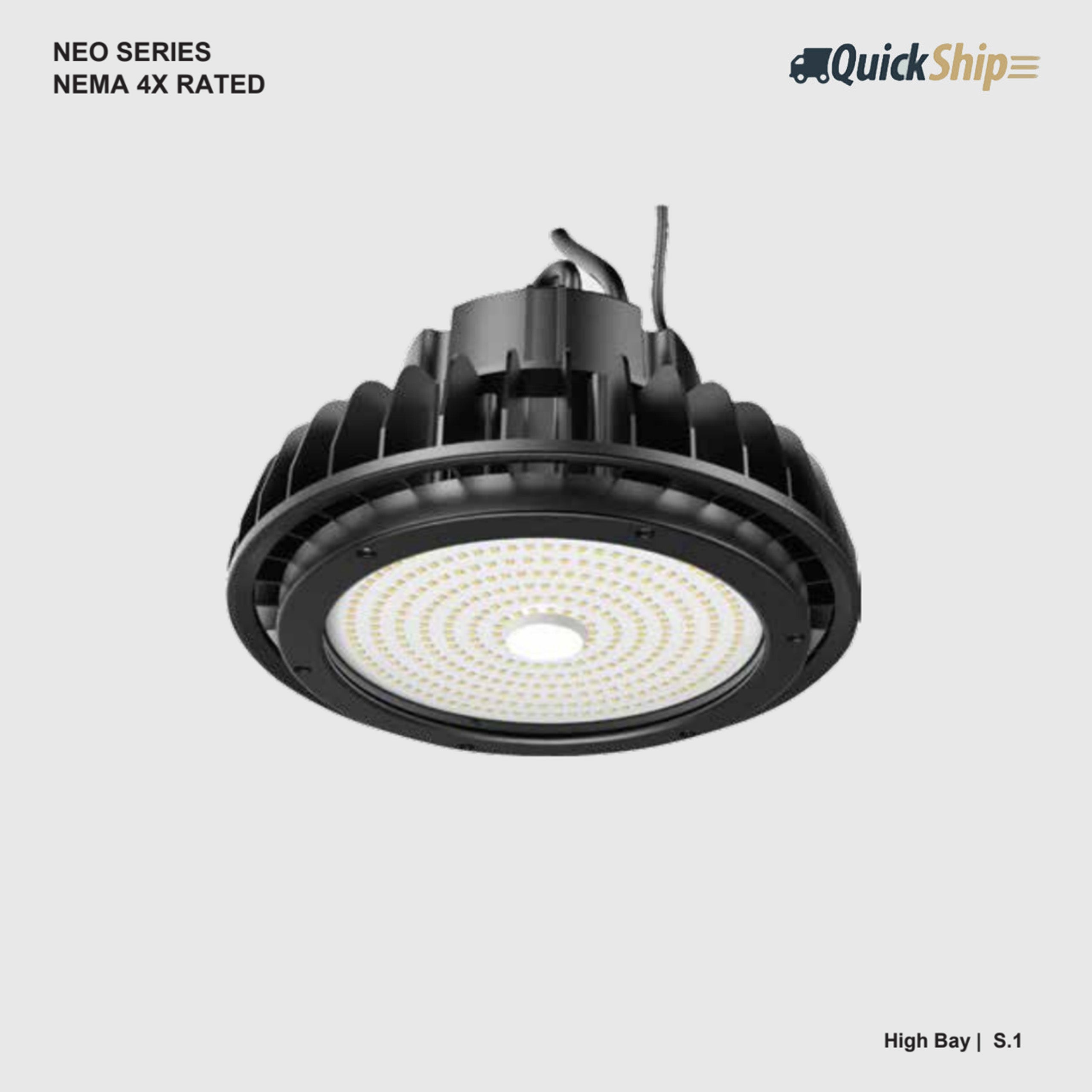

Neo High Bay

The Neo is a high-performance LED high bay luminaire that is perfect
for distribution centers and warehouses. It can be applied to industrial, commercial, gymnasium and other applications that would traditionally use HID or fluorescent luminaires.
Neo has lower energy consumption than traditional high bays that will bring significant savings on your utility bills.
This an excellent replacement for 250-1000W metal halides.
300W LED's 42,000L can replace 1000W metal halides.

Features

Aluminum die-cast housing with anti corrosion heat sinks and rear air flow channels, maximize heat dissipation resulting in cooler operation, longer life and improved performance.
Neo is IP65 rated, operates at -30 to 50 degrees Celsius.

Nema 4X
Comes standard with rigid eye-bolt.
Standard 1-10V dimmable, down to 10%.
Optional bracket for conduit and surface mount.
Sensor mounting height ≤14m (45.9')
L70 >100,000 hours @ 25°C
UGR <25 with Lens

More Accuracy

Aluminum or prismatic reflectors direct the light emitted from the Neo for a more accurate beam spread.

REFLECTOR

Reflector options:
Prismatic (Left) & Aluminum (Right)

OPTIONS

WIRE GUARDS

Black & White versions


INLINE DISCONNECT

Inline UL listed IP65 Disconnect for quick
change or maintenance

VISORS

Mounting Options

SENSORS

Quick Summary

• Wattage: 100W, 150W, 200W, 240W, 300W, 400W, 500W
• Mounting: Eye Bolt, Bracket with Eye Bolt, Bracket with S Hook, Slip Fitter
• Lumen : 14000lm, 21000lm, 28000lm, 312000lm, 42000lm, 52000lm, 65000lm
• Optics: 120˚(Standard), 60˚, 70˚, 90˚
• CCT: 3000K, 4000K, 5000K
• CRI: Ra>80,Ra>90
• Voltage: 120-277V, 200-480V
• Dimming: 0-10V
• Finish: Black(Standard), White, Grey
• Reflector: Aluminum, Polycarbonate, PMMA Acrylic, No reflector
• Lens: Glass Clear (Standard), PC Clear, PC Frosted, Glass Frosted
• Certification: UL & DLC
• Warranty: 6 Years




Downloads

  • IES Files
  • Data Sheet
  • Warranty Statement
  • Installation Guide
