Downlight Platforms

Downlight platforms have been designed to commission the singular frame platform for different downlights. This enables you to save time when responding to last minute lighting changes. Available in different aperture sizes: 3", 4", 5", 6 to 17“ in both round and square trims.

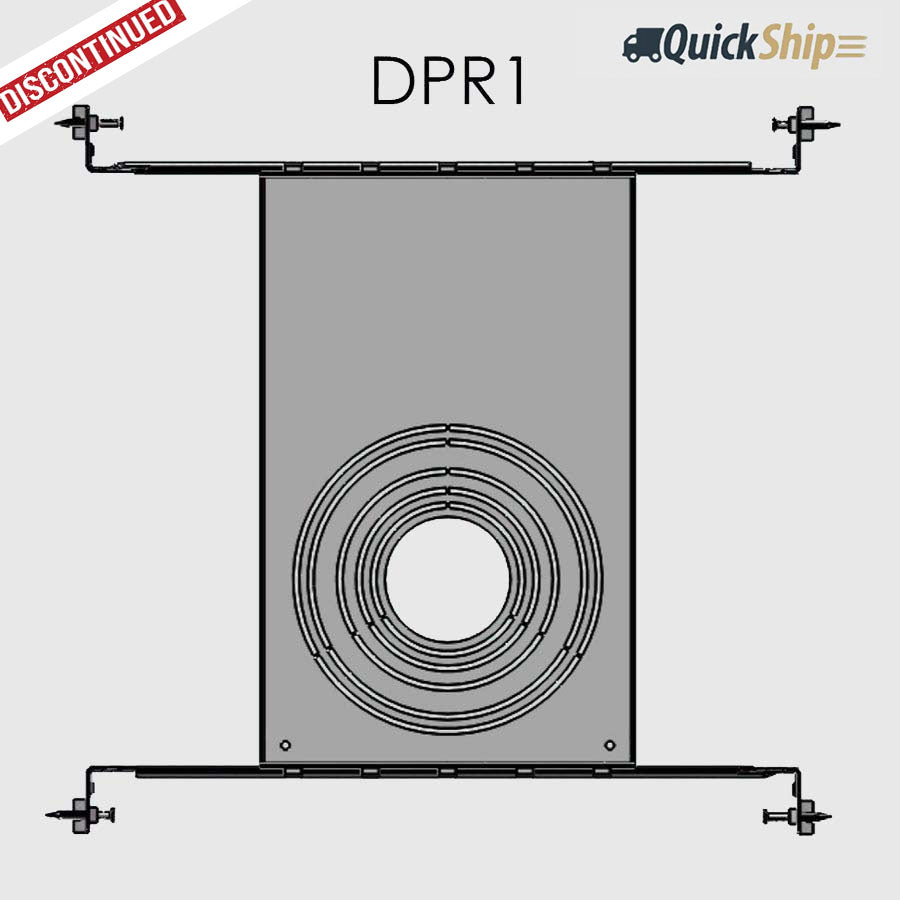

Round R1

MODELSIZEWATTAGE
CUT-OFF SIZE
(mm)
Cosmos4"20W/30W115
Cosmos5"20W/30W/45W/50W145
Cosmos6"30W/40W/50W160
Holmes4"20W115
Holmes5"30W/40W145
Holmes6"50W160
Ester2 ½"10W65
Ester3"18W80
Leo Recessed Trim
3"12W75-80
Phoenix Recessed Trim
3"12W75-80

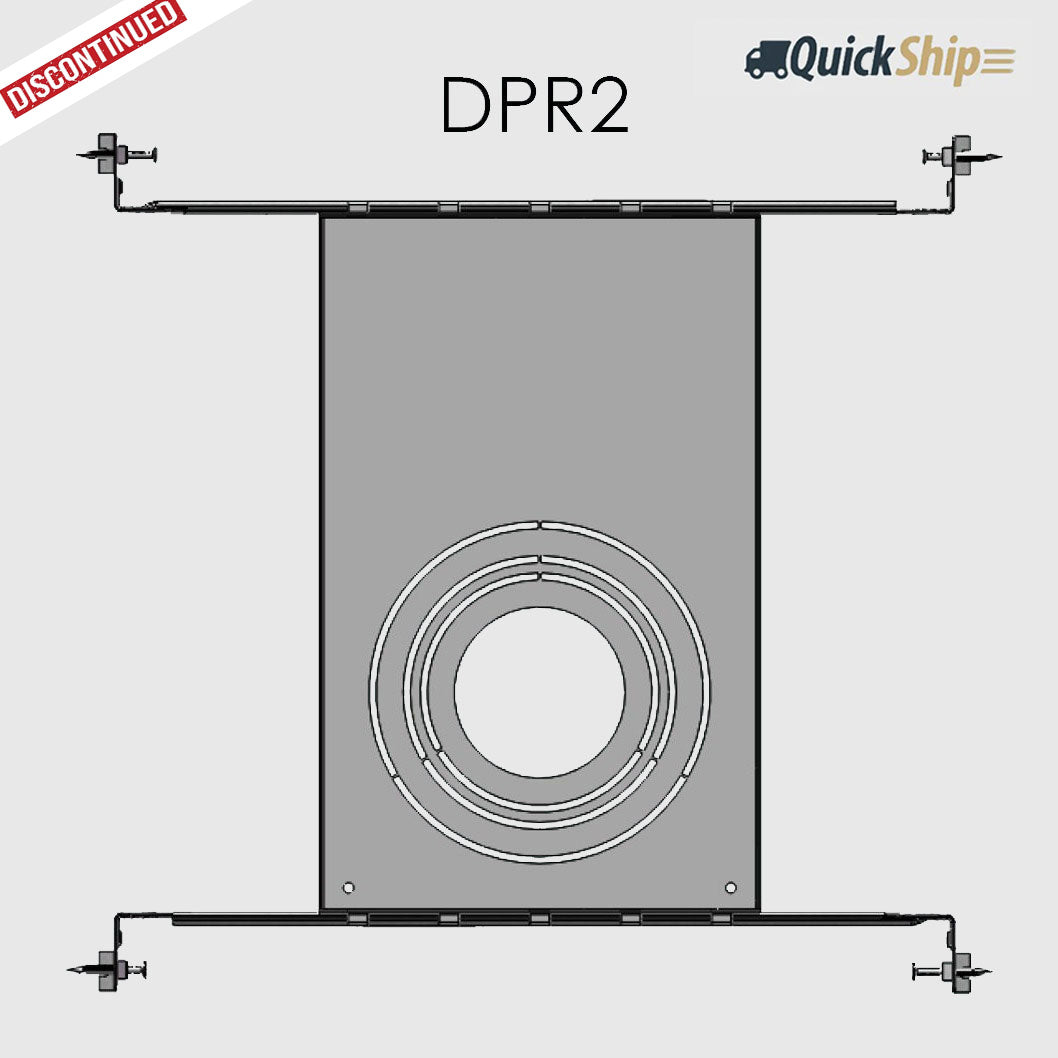

Round R2

MODELSIZEWATTAGE
CUT-OFF SIZE
(mm)
Jupiter6"20W/30W150
Taurus6"20W/30W150
Nash3"10W75
Eclipse Asymmetrical Symetrical Double Asymmetric Rectangular
3"12W75
Pluto3"7W75
Pluto4"10W105
Leo/Phoenix Recessed Trim
3"12W75-80
Leo/Phoenix Recessed Trim
4"20W105-110
Leo/Phoenix Recessed Trim
5"30W120
Leo/Phoenix Recessed Trim
6"35W150
Leo/Phoenix Recessed Trimless
3"12W75
Leo/Phoenix Recessed Trimless
4"20W105

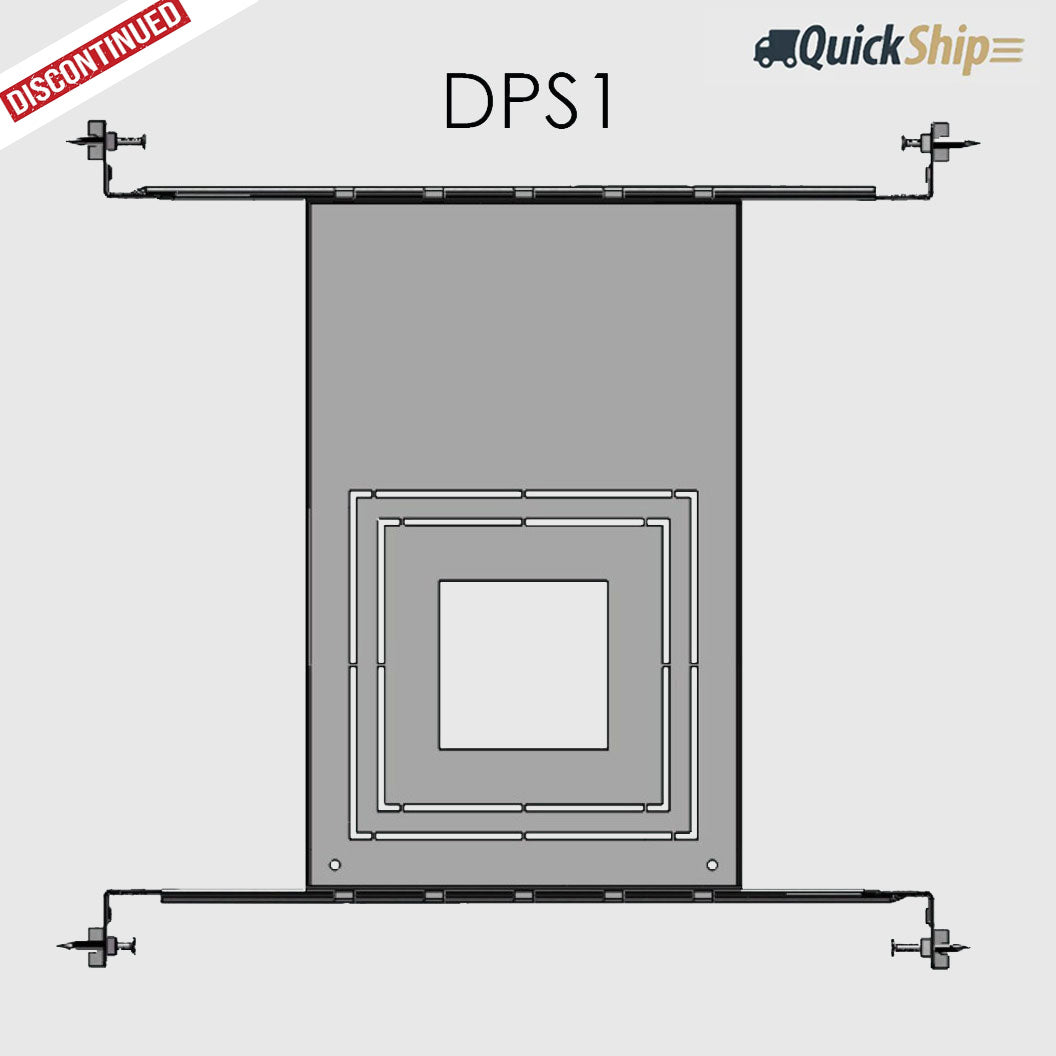

Square S1

MODELSIZEWATTAGE
CUT-OFF SIZE
(mm)
Saros5"x5"25W130x130
LLG3516"x6"32W155x155
LLG3516"x6"40W155x155
Orion Recessed Trim
3"x3"12W75-80x75-80
Orion Recessed Trimless
3"x3"12W75x75

Square S2

MODELSIZEWATTAGE
CUT-OFF SIZE
(mm)
Rigel5½"x5½"28W142x142
Rigel8"x8"42W199x199
Atlas6½"x6½"32W165x165
Orion Recessed Trim
4"x4"20W100-105x100-105
Orion Recessed Trimless
4"x4"20W100x100

Square S3

MODELSIZEWATTAGE
CUT-OFF SIZE
(mm)
Atlas18"x7"3x32W455x165

Square S4

MODELSIZEWATTAGE
CUT-OFF SIZE
(mm)
Atlas12"x7"2x32W310x165
Saros10"x5"2x25W2x25W 250x130

Downloads

  • Downlight Platform Round R1 Datasheet
  • Downlight Platform Round R2 Datasheet
  • Downlight Platform Square S1 Datasheet
  • Downlight Platform Square S2 Datasheet
  • Downlight Platform Square S3 Datasheet
  • Downlight Platform Square S4 Datasheet
