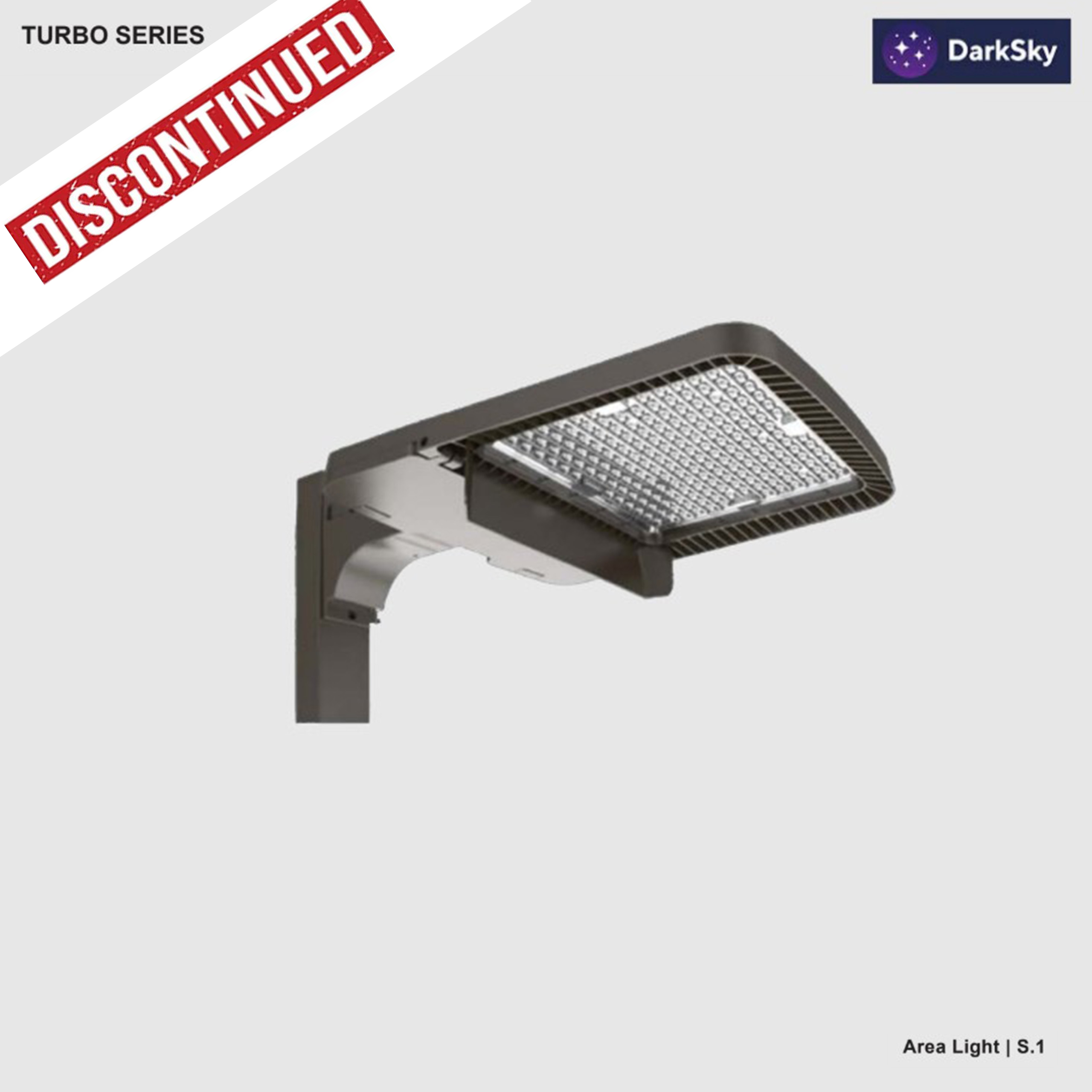

Turbo Area Light
The Turbo series is an exceptional LED choice for large parking lots and area light luminaire. Fully rotatable optics allow for precise lighting design and on site aiming. It has a patented all-around ventilation that allows for washing off dust, leaves and birds droppings. Saves 60% labor costs through single person easy installation and tool free safety switch. Exceptional High performance and system efficiency of 170 lm/W suitable for any applications. Side and rear shielding is available for applications sensitive to light trespass. Optional integral occupancy and photocell sensors are available for maximum energy savings.
3000K or warmer and (AR) fixed arm mount must be selected for IDA certification.
Quick Summary
• Wattage: 75W, 100W, 120W, 145W, 180W, 200W, 230W, 300W
• Lumens: (75W) - 12750lm, (100W) - 17000lm, (120W) - 20400lm, (145W) - 24650lm, (180W) - 30600lm, (200W) - 34000lm, (240W) - 39100lm / 40800lm, (300W) - 51000lm,
• Mounting: Arm, Slip Fitter, Trunnion
• Optics: TYPE II
, Type III, Type IV, Type V
• CCT: 3000K, 4000K, 5000K
• CRI: Ra>70
• Voltage: 100-277V(UNV), 347-480V(HV)
• IP Rating: IP66
• Finish: Dark Bronze (Standard), White, Black
•Certification: CE, cETL, DLC,
ANSI C136.31-3G Applications Compliance
• Warranty: 6 Years
3000K or warmer and (AR) fixed arm mount must be selected for IDA certification
Downloads
- Data Sheet
- IES Files
- Installation Guide
- Warranty Statement
