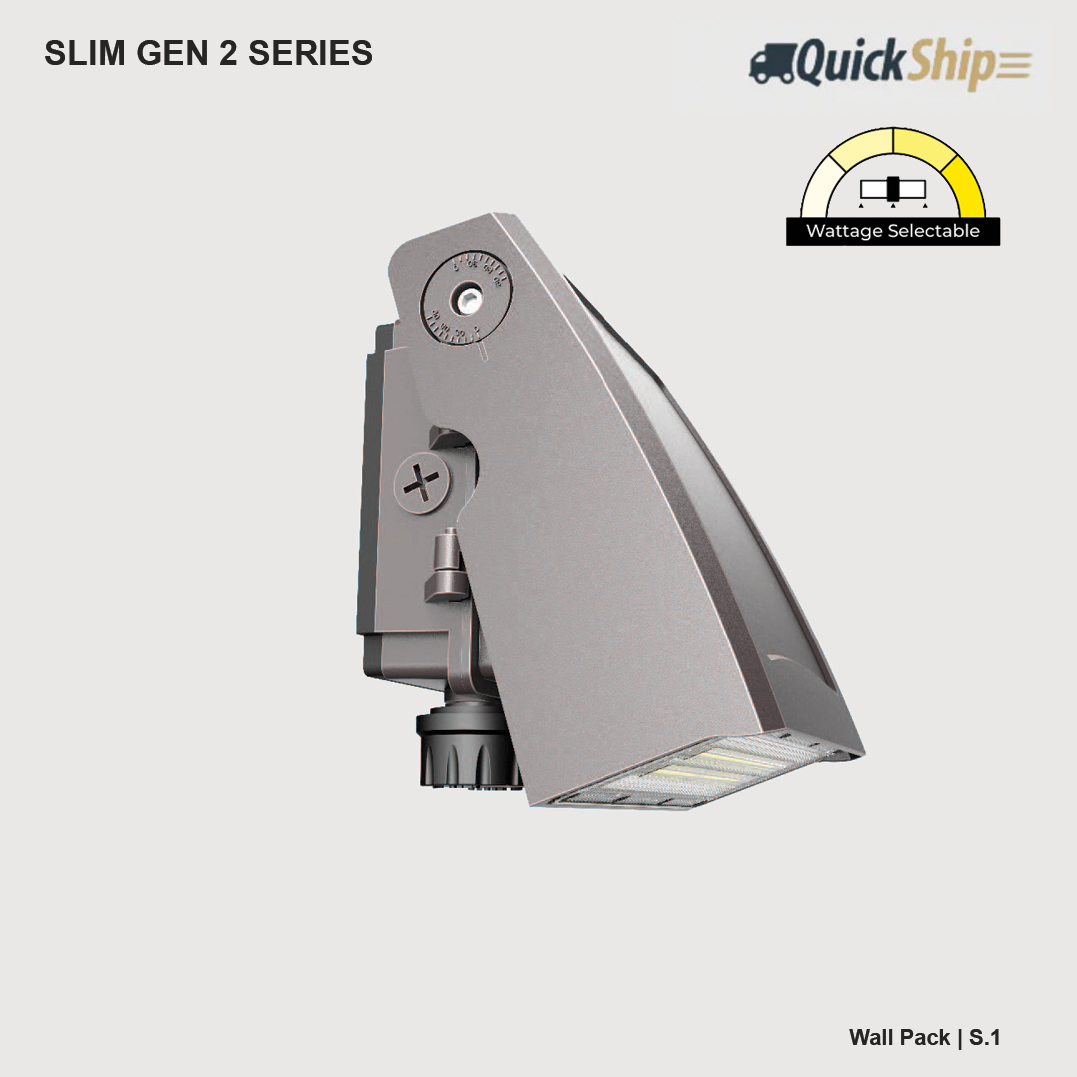

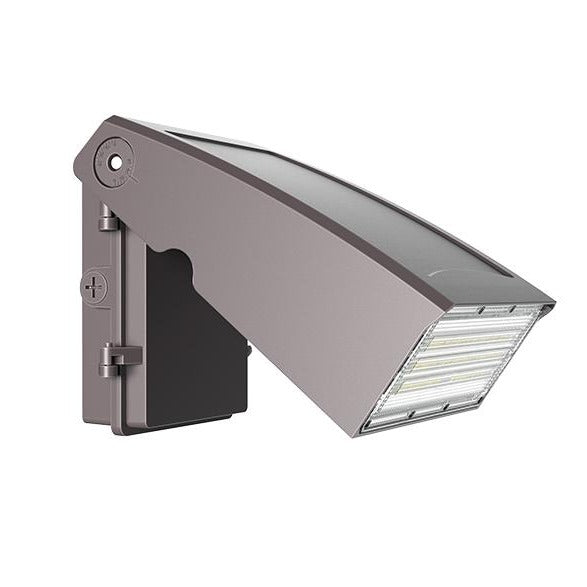

Slim Gen 2 Wall Pack

The Slim Gen 2 series is a WATTAGE TUNEABLE wall pack luminaire with 4 OUTPUT LEVEL SETTINGS per model.

It's unique and adjustable direction and can be aimed from 0-90 degrees so forward throw illumination can be precisely aimed.

This is an ideal commercial or residential outdoor fixture and easily replaces to any wall packs lights.

Durable die-casting aluminum housing construction. UV-resistant polycarbonate refractor lens Type II distribution optics. The standard finish is Dark Bronze (DB) (RAL 8019). Also available in black (BK).

It is suitable for many diverse applications such as building façades, commercial, industrial, retail, residential, hospitality buildings that demand long service life and low maintenance.

Quick Summary

• Wattage: 40W (Tunable), 80W (Tunable)
• Mounting: Wall Mount
• Adjustable Angle: 0-90 degrees
• Lumens : 5600lm, 11200lm
• Optics: Type II
• CCT: 4000K, 5000K, 5700K
• CRI: Ra>70
• Voltage: 120-347V
• Dimming: 0-10V Dimming
• Finish: Dark Bronze(Standard), Black
• IP Rating: IP65
• Certification: cETLus, and DLC
• Warranty: 6 Years

Downloads

  • IES Files
  • Data Sheet
  • Warranty Statement
  • Installation Guide
