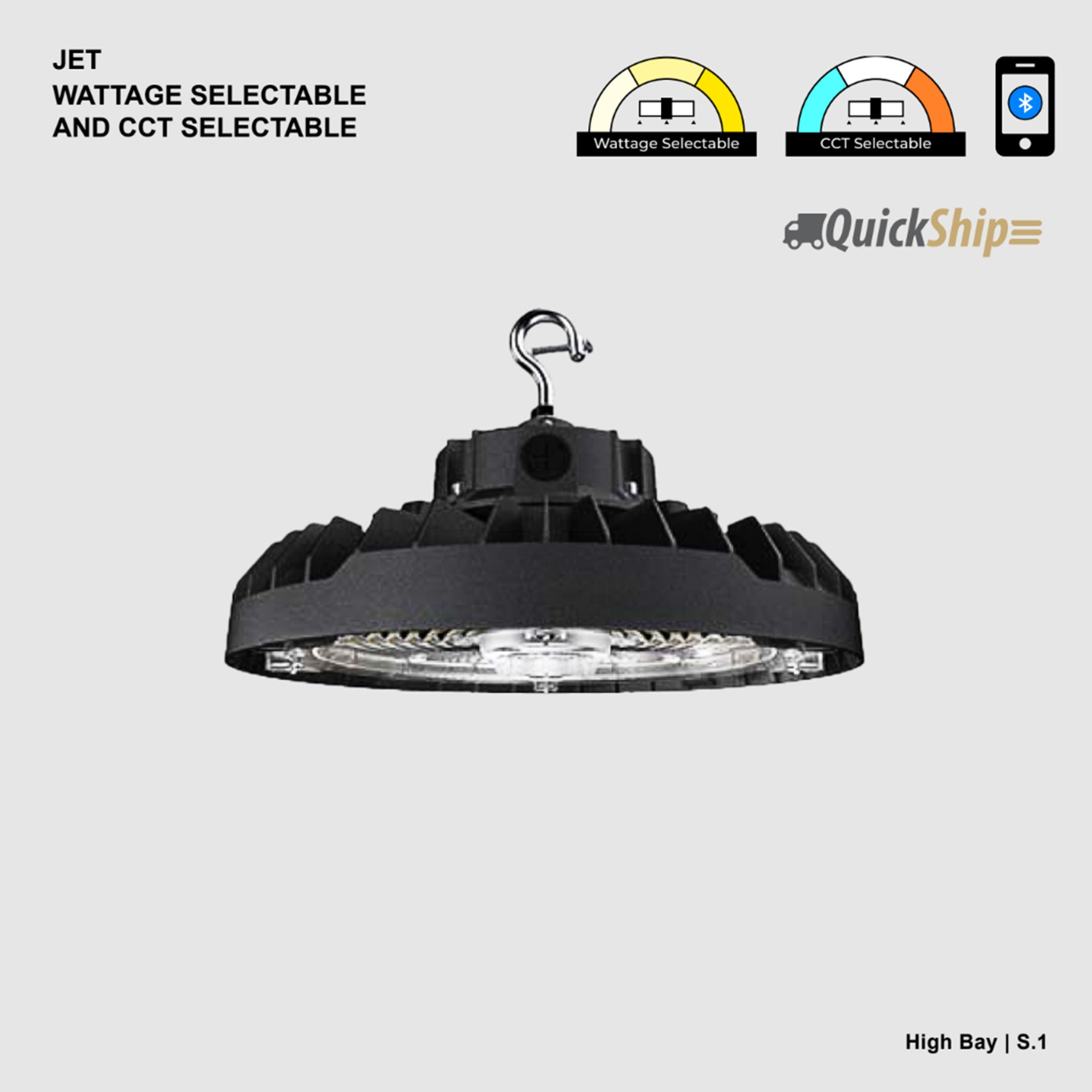

Jet Bay
The Jet is a WATTAGE SELECTABLE AND CCT SELECTABLE high bay featuring a patented design with aesthetic modeling and unique style. It is occupancy sensor ready (It features a built-in occupancy sensor socket) It has a luminous output of 140LM/W making it an ideal solution for warehouses, factories, airports and other high bay applications.
Features
Available in 100/120/150W or 150/200/240W models, with CCT selectable for 3000K/4000K/5000K.
CRI: 80+
Beam Angle: 90° (Standard)
Ambient Temperature: -30° to 50° C (-22° to 122° F)
IP65 Rated
IK08
Built-in Occupancy Sensor Socket (Sensor Optional) Standard 0-10V Dimming down to 10%
Quick Summary
• Wattages: 100/120/150W | 150/200/240W
• Lumen Output: (150WS) - 21000lm, (240WS) - 36000lm
• Mounting: Eye Hook, Ceiling Bracket
• Optics: 90D (Standard)
• CCT: Selectable 3000K / 4000K/ 5000K.
• CRI: 80+
• Voltage: 120-277V (UNV)
• Dimming: 0-10V Dimming
• Finish: Black
• IP Rating: IP65
• Certification: DLC and ETL
• Warranty: 6 Years
Downloads
- Data Sheet
- IES Files
- Installtion Guide
- Warranty Statement
