Zoom Cosmos Downlight
Zoom Cosmos Downlight

Cosmos Downlight

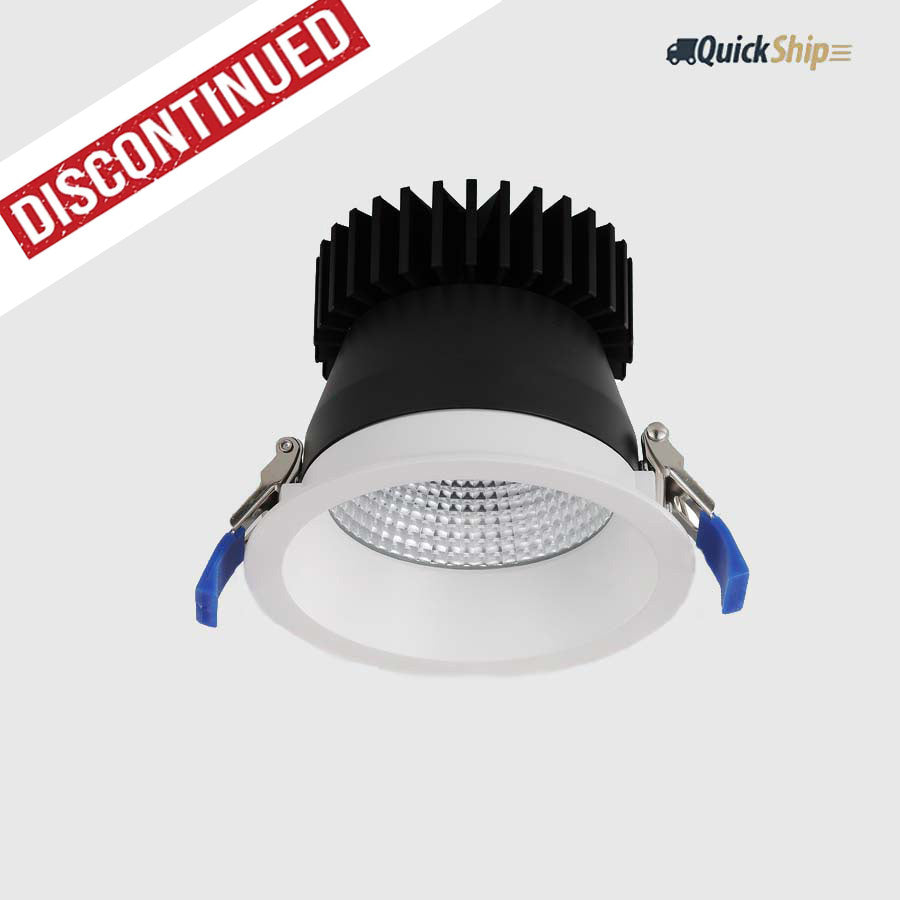

The Cosmos LED Recessed Downlight delivers a unique glow that combined with its smooth dimming capability, allows you to adjust the light to the level that can fit the look and feel of the space.
The COB Light source is ideal for offices, Shopping malls, living rooms, warehouses, Kitchens or even garages.
Housing is made of extruded Aluminum with Powder coated paint finish.
Available in white (RAL 9003), black (RAL 9005) and grey aluminum (RAL 9006) color. Reflector is specular silver anodized aluminum that can be easily and manually replaced. The led driver is included and external to the fixture.
Clear Lens (Standard) and Frosted glass Lens (Optional) are available.

The lumen output is based on 3000K. CRI>90.

Cosmos Available in various sizes and wattages
4'' - 20W/30W (CCT Selectable)
5'' - 20W/30W (CCT Selectable)
        40W/50W (Single CCT)

The Driver of Cosmos Downlight is remote. For complete installation instructions, please refer to our installation guide.

Available Downlight Platform
DPR1 - Downlight Platform Round 1











Cosmos Available in various sizes
Wattages 4'' (20W/30W) & 5'' (20W/30W/40W/50W)

Quick Summary

• Wattage: 20W/30W (CCT Selectable), 40W/50W (Single CCT)
• Lumen : 1800lm, 2700lm, 3600lm, 4500lm
• Size: 4in, 5in
• Optics: 15°, 24°, 30°, 45°, 60°
• CCT: 3000K 3500K 4000KSelectable (20W-30W Only), 3000K, 3500K, 4000K
• CRI: Ra>90
• Voltage: 120-277V
• Dimming: 0-10V Dimming
• Finish: White (Standard), Black, Grey
• Lens: Clear (Standard), Frosted
• Certification: CE and cETL
• Warranty: 5 Years








Downloads

  • Data Sheet
  • IES Files
  • Installation Guide
  • Warranty Statement
