Zoom Wave

Wave

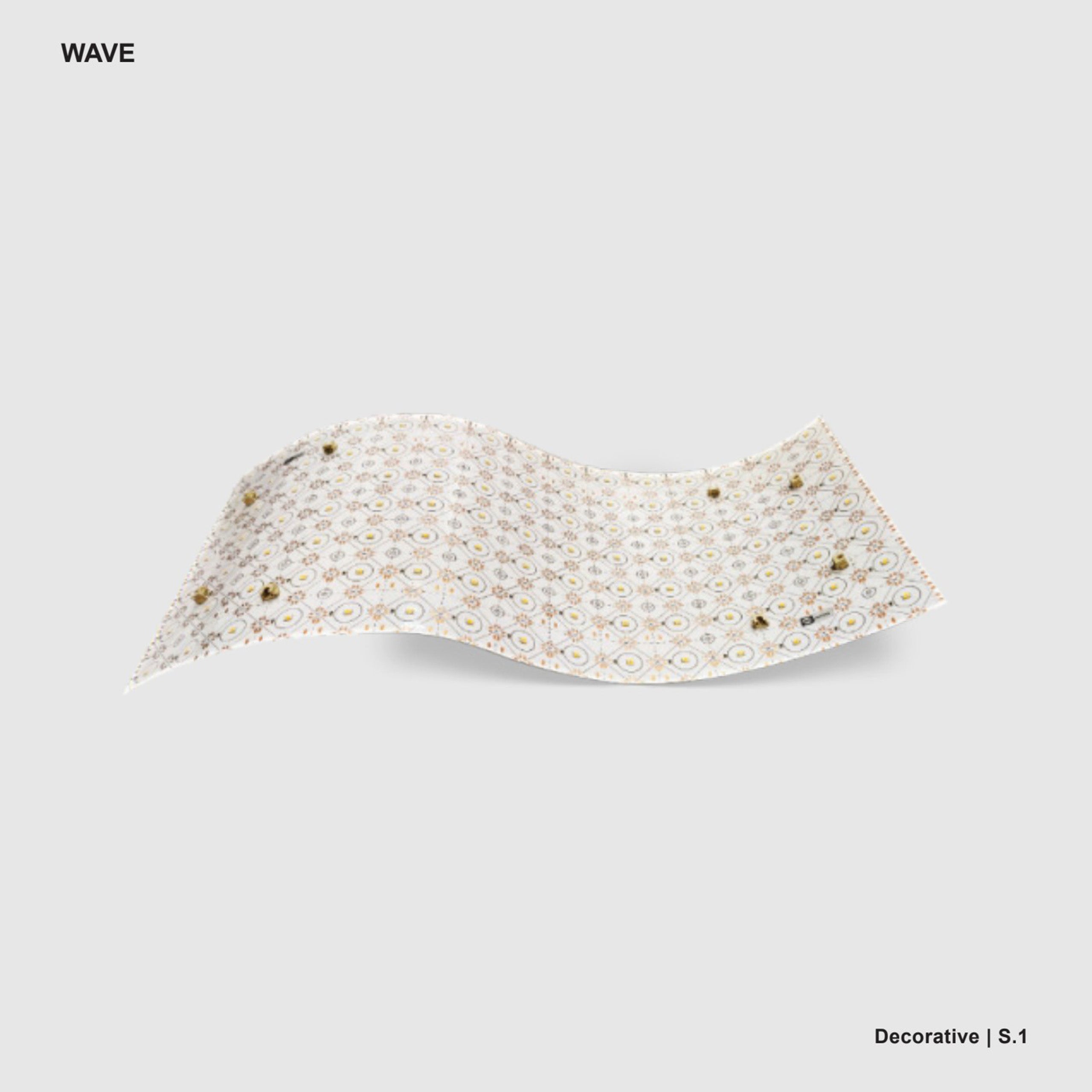

The Wave Panel offers a field customizable LED back lighting solution. This flexible panel can be folded and shaped to suit any project. Versatile design allows use in
both indoor and outdoor applications.

This product must be used with factory recommended driver. Choice of colour temperatures with dimming using appropriate driver. Please consult LuxLogic for proper driver configuration.

Pre-affixed 3M mounting tape on reverse. 1m (39.37") lead wire and 95mm jumper cable included per sheet. 2-Pin connection blocks per sheet located for easy connection.

Quick Summary

• Wattage: 12W / sheet
• Lumen : 12W-1100lm
• CCT: Selectable 2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 6000K
• CRI: Ra>90
• Voltage: 120-277VAC (UNV)
• Dimming: 0-10V Dimming
• Mounting: 3M Tape Mounting
• IP Rating: IP54
• Certification: cULus and CE
• Warranty: 6 Years

Downloads

  • Data Sheet
  • Driver Data Sheet
  • Installation Guide
  • Warranty Statement
