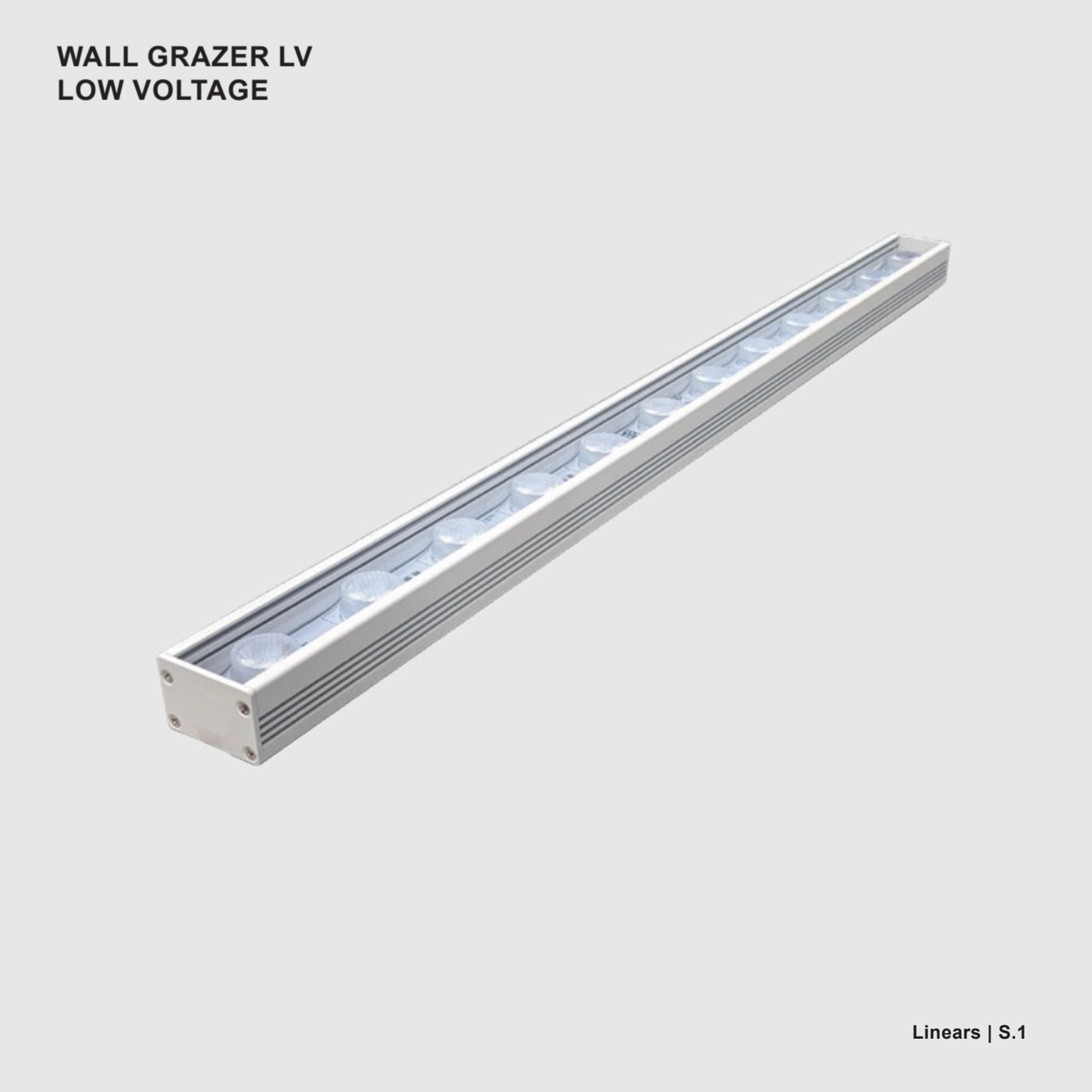

WALL GRAZER LV

The Wall Grazer LV linear is a simple, yet elegant solution for wall washing and grazing applications where crisp, single colour light is desired along a wall or ceiling. The use of elliptical optics ensures smooth lighting across the entire surface with optimal overlap between LEDs, and little spill or throw beyond the illuminated plane.

Aluminum extrusion housing with white finish. Maximum daisy chain length of 6' / 2m.

Quick Summary

• Wattage: 12W / 24W / 36W / 48W
• Mounting: Mounting Clip (Standard), Swivel Mount (1 pair)
• Lumens : (W22) - 830lm, (W27) - 1080lm, (W30) - 1000lm, (W35) - 1080lm, (W40) - 1080lm, (W50) - 1120lm, (W57) - 1120lm, (W60) - 1120lm, (W65) - 1120lm
• Optics: 20 x 45° (Standard), 6x6° / 10 x 10° / 15 x 15° / 25 x 25° / 30 x 30° / 40 x 40° / 60 x 60° / 90 x 90° / 6 x 40° / 10 x 30° / 10 x 45° / 10 x 70° / 12 x 48° / 20 x 45° / 20 x 65°
• CCT: Selectable 2200K / 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6000K / 6500K / BLUE / RED / GREEN / AMBER
• CRI: Ra>80Ra+
• Voltage:  120-277VAC (UNV), 347V (HV)
• Dimming: 0-10V Dimming
• Finish: White, Black
• IP Rating: IP65
• Certification: cULus, and DLC Premium
• Warranty: 6 Years
