Jupiter Downlight

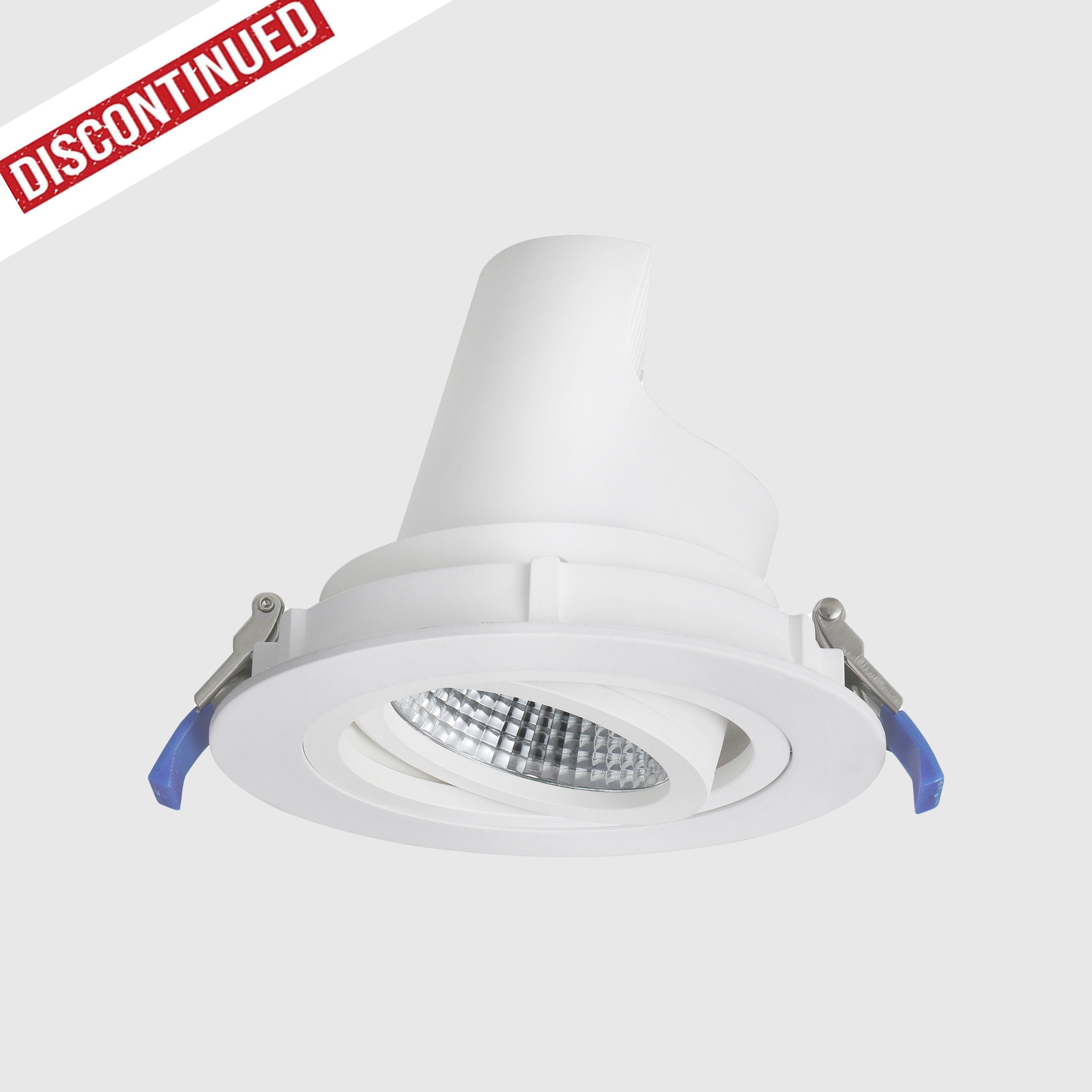

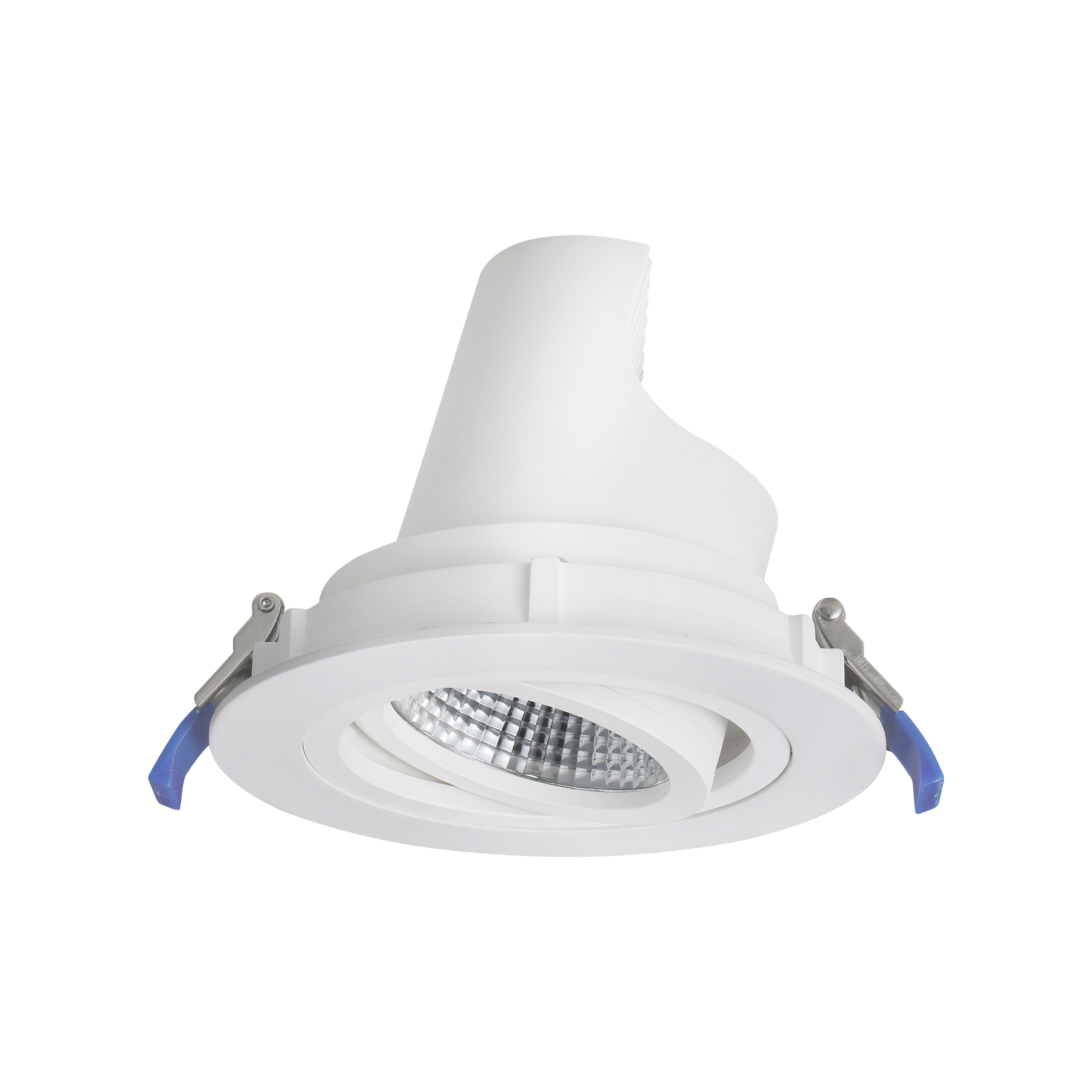

The Jupiter is a modern LED downlight with the latest generation of COB LEDs. It has a subtle way of displaying important areas. It is applicable to art galleries, shop windows, and museums. The product is easily tilted for beam direction change. The housing is made of extruded aluminum and is powder-coated.

Available in white (RAL 9003), black (RAL 9005), and Grey aluminum (RAL 9006) colors.
The reflector is specular silver anodized aluminum that can be easily and manually replaced.

The led driver is included and external to the fixture. Clear glass Lens (Standard) and Frosted glass Lens (Optional) are available.

The lumen output is based on 3000K CRI >90

Jupiter Available in 6'' (20W/30W CCT Selectable)

The Driver of Jupiter Downlight is remote. For complete installation instructions, please refer to our installation guide.










                                                 JupiterAvailable in 6'' (20W/30W)

Quick Summary

• Wattage: 20W, 30W
• Lumen : 1800lm, 2700lm
• Size: 6in.
• Optics: 15°, 24°, 45°, 60°
• CCT: 3000K 3500K 4000K Selectable
• CRI: Ra>90
• Voltage: 120-277V
• Dimming: 0-10V Dimming
• Finish: White (Standard), Black, Grey
• Lens: Clear (Standard), Frosted
• Certification: CE and cETL
• Warranty: 5 Years
