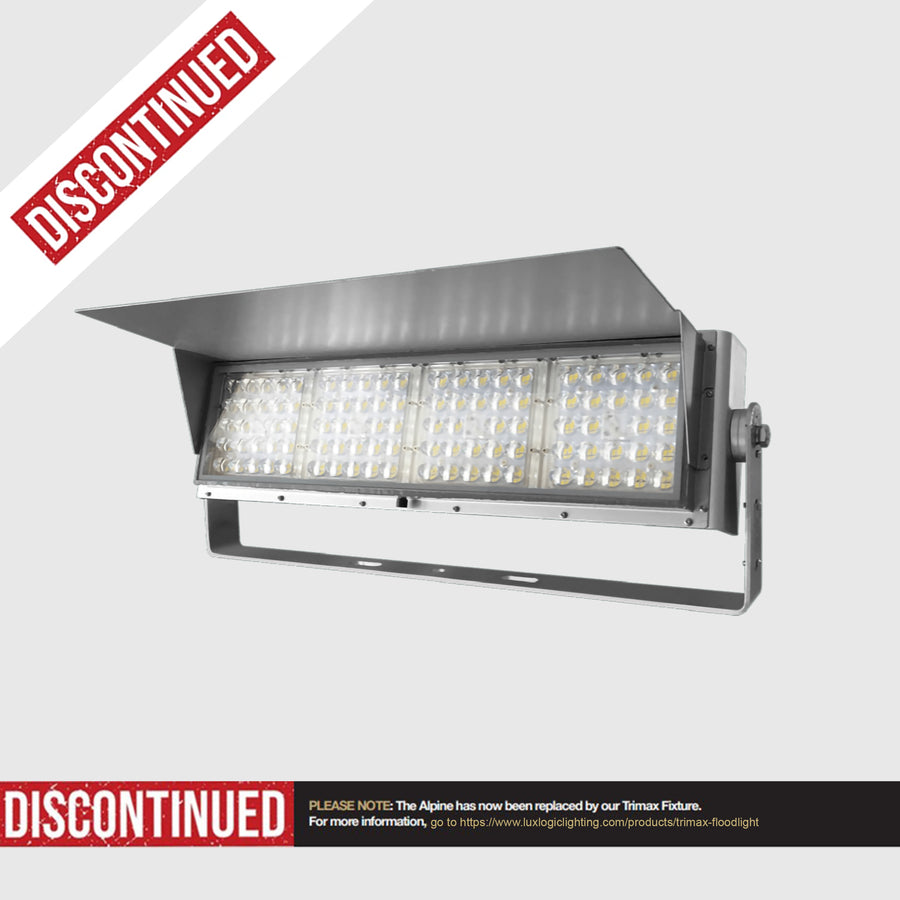

Alpine Ski Hill Floodlight
High-performance low profile LED floodlight designed for a wide variety of applications and mounting heights. Multiple optics and color temperature options make the HBFL ideal for exterior area lighting, retail, sports fields and ski hills.
Construction:
Extruded aluminum heat sinks with driver thermally isolated from the LEDs. Edge-to-edge high impact glass lens with no bezel prevents dirt and ice build-up on the optics.
Optics:
Lumileds or Cree LED chips. 6X3 optics, ideal for the long projected throw at low mounting heights. Optics can deliver light up to 7 times the mounting height uniformly from the pole to the target. Low profile, the wide optic design ensures minimal exposure to the elements. Visor protects the optics and redirects potentially wasted light back to the target plane, minimizing sky glow and blocking unwanted glare. A unique optic venting system allows air to flow freely in and out of the optics while blocking water, condensation and contaminants. Optics stay clean, efficient and long-lasting.
Electrical:
Moons driver is rear-mounted and easily accessible for maintenance. 100-277V or 347-480V operation. 0-10V dimming standard. Suitable for operation in -40˚C to +50˚C ambient environments.
Mounting:
Robust adjustable yoke bracket with a mechanical aim-lock system can be mounted directly to a surface or pole cross arms.
The Ultimate Ski Hill Flood Light
LEDs have swept the conventional lighting marketplace
for a variety of reasons, most notably their extended lifespans, reduced energy consumption and lower maintenance requirements. More and more facility
managers are looking to upgrade their lighting systems
with LEDs
Uniformity
This uniquely designed fixture has light
distributions that significantly enhance
light levels and uniformity on ski slopes.
The traditional HID flood lights create
uneven dark spots across the ski slope.
Before
After
ENERGY SAVING
The Alpine flood light produces up
to 48,000 lumens. With more than 110 lumens per Watt, it is far more
efficient than any high-intensity
discharge (HID) fixtures. With
specially designed optics for ski hills,
the Alpine can reduce energy costs
by up to 70%.
400W LED
1000W HID
Night Ski At Blue Mountain
Notable Clients
Quick Summary
• Wattage: 200W
• Lumens: 24000lm
• Chip: Lumileds/Cree
• CCT: 3000K, 4000K, 5000K
• CRI: Ra>70 (STANDARD) , Ra>80
• Optics: 6X3
• Voltage: 120-277V, 347-480V
• Dimming: 0-10V
• Mounting: Yoke
• Finish: Grey, Black
• IP rating: Wet Location / IP65
• EPA: 1.27
• Certification: cETLus, DLC
• Warranty: 6 Years
Downloads
- Contact Us for IES Files
- Data Sheet
- Warranty Statement
- Installation Guide
