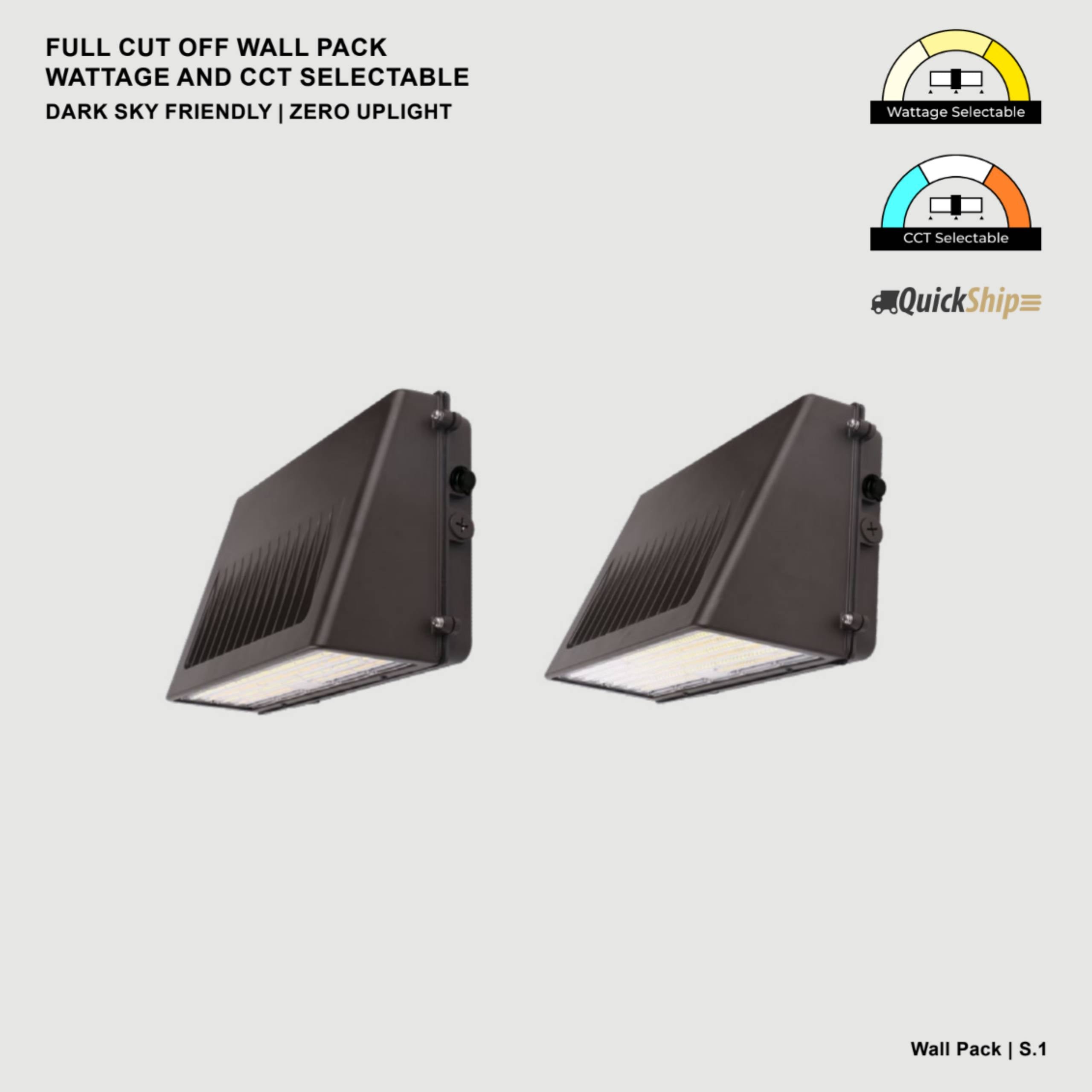

Full Cut Off Wall Pack

The Full Cut Off Wall Pack is Wattage and CCT Selectable allowing for flexible installation across a variety of applications.

Designed to match the footprint of a typical metal halide glass wall pack, it provides a wide, uniform light distribution for reliable illumination.

A high-quality polycarbonate lens works with a high-efficiency LED light engine to deliver consistent performance. A photocell is included as a standard feature, with an optional emergency battery backup available.

The rugged die-cast aluminum housing features a durable bronze powder-coated finish, while integral gaskets seal the housing to help prevent the ingress of dust, moisture, and other external contaminants.

Quick Summary

• Wattage: 63WS(63W/45W/30W) / 90WS(90W/63W/45W) / 125WS(125W/105W/76W)
• Lumens : (63WS) -10080lm, (90WS) - 14400lm, (125WS) - 20000lm
• CCT: Selectable 3000K, 4000K, 5000K
• Mounting: Wall Mount
• CRI: 70
• Voltage: 120-277V (UNV), 120-347V (CUNV)
• Dimming: 0-10V Dimming
• Finish: Dark Bronze (Standard), White
• IP Rating: IP65
• Certification: cULus and DLC Premium listed
• Warranty: 6 Years
