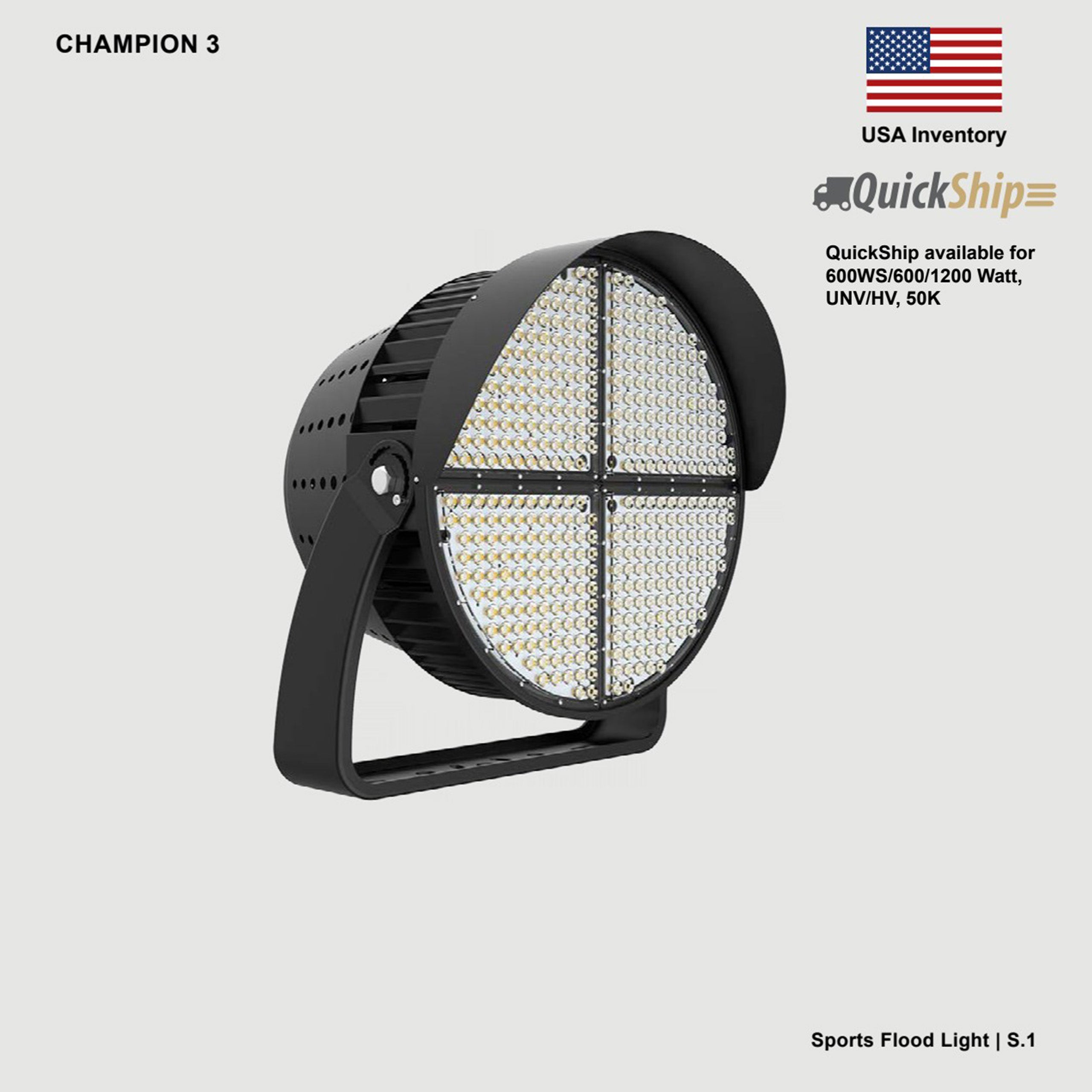

Pro Sports Flood Light
It is available with multiple wattage options that allow you to choose the exact
number of lumens you require for your application. Cutting edge design with laser aiming reduce the hassle of the lengthy and costly aiming process to a
The precisely engineered optics provide uniform illumination across the field with less light spill. The Fixture comes with an integral Surge protection Device 20kv(standard). Operating temperature -40° to 50°C (-104F to 122F).
Effective Projected Area (EPA)
The EPA for 300-600W is 1.727 sq.ft,
f700-1000W is 2.574 sq.ft.
For mounting you can choose
between the yoke YK(standard) and SF slip fitter .
For aiming assistance choose the laser option.
Visor VS is also optional.
• Wattage: 300W, 400W, 500W, 600W, 700W, 800W, 1000W
• Mounting: Yoke (Standard), Slip Fitter
• Lumen : 45000lm, 60000lm, 75000lm, 90000lm, 105000lm, 120000lm, 150000lm
• Optics: 15˚, 30˚, 45˚, 80˚
• CCT: 3000K, 4000K, 5000K, 5700K
• CRI: Ra>70
• Voltage: 120-277V, 277-480V
• Finish: Black
• IP Rating: IP66
• Certification: cETLus
• Warranty: 6 Years
- IES Files
- Data Sheet
- Warranty Statement
- Installation Guide
